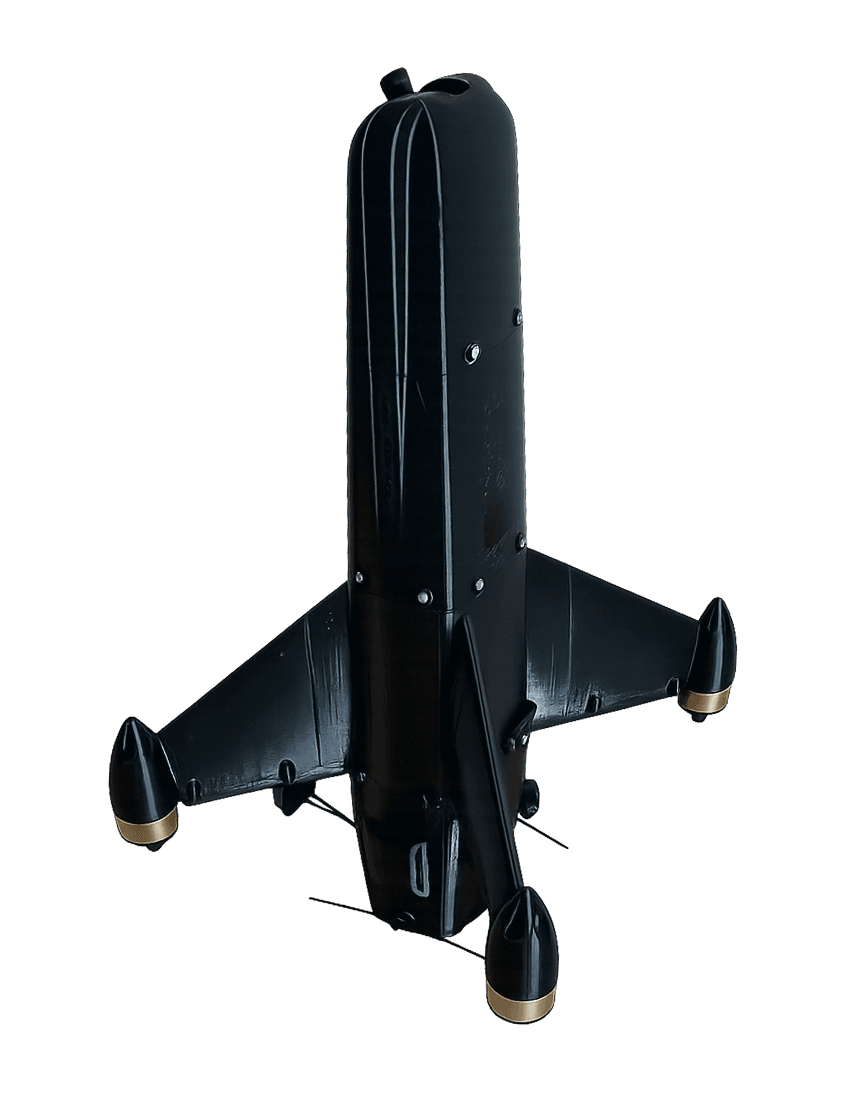

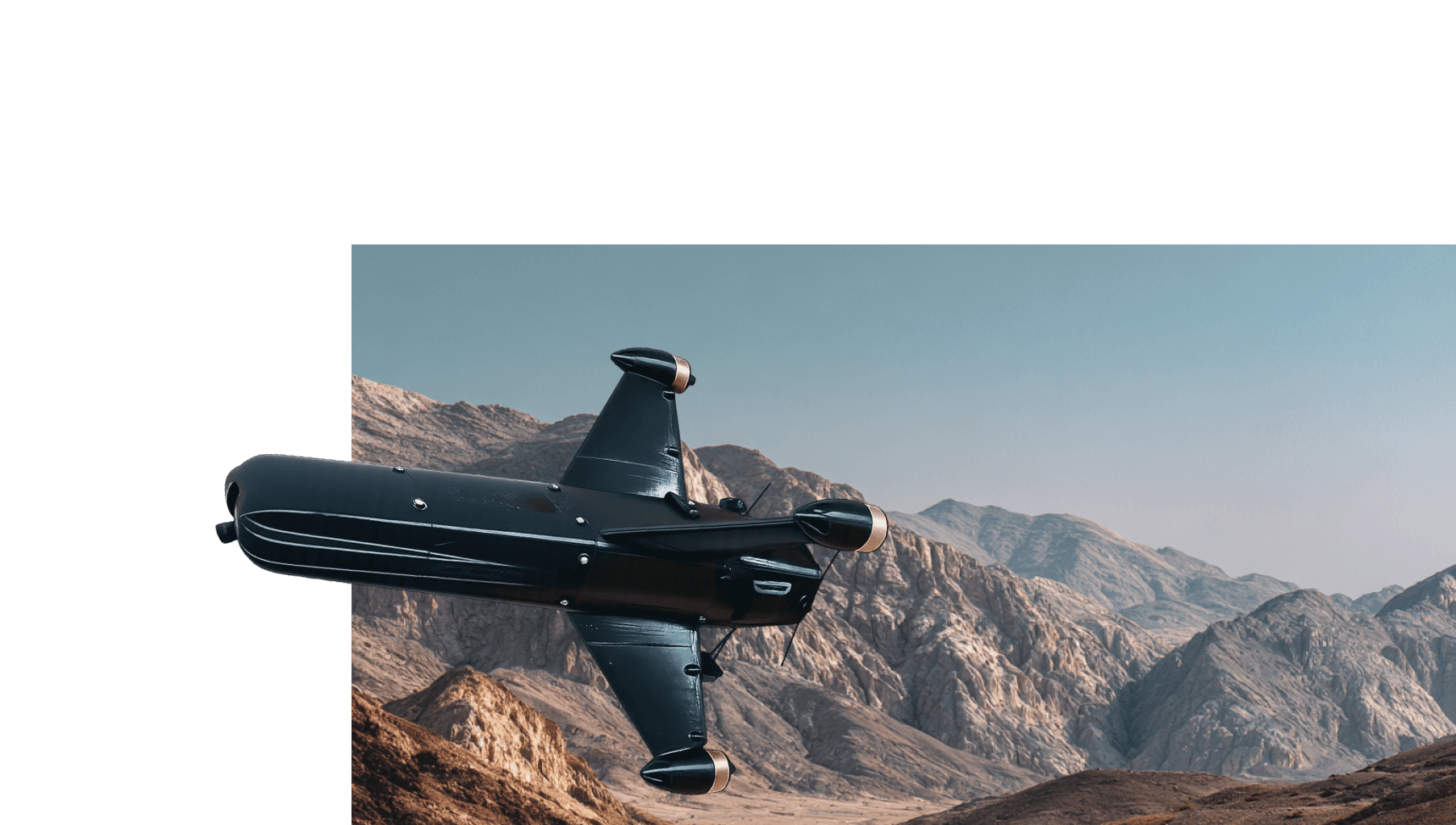

Guardian-1 Interceptor
High-speed counter-UAS interceptor. Shahed & Geran class.
The Guardian-1 Interceptor is a counter-drone interceptor designed for one-way attack drones, including Shahed-136 and Geran-2, and other Group 3-class unmanned threats.

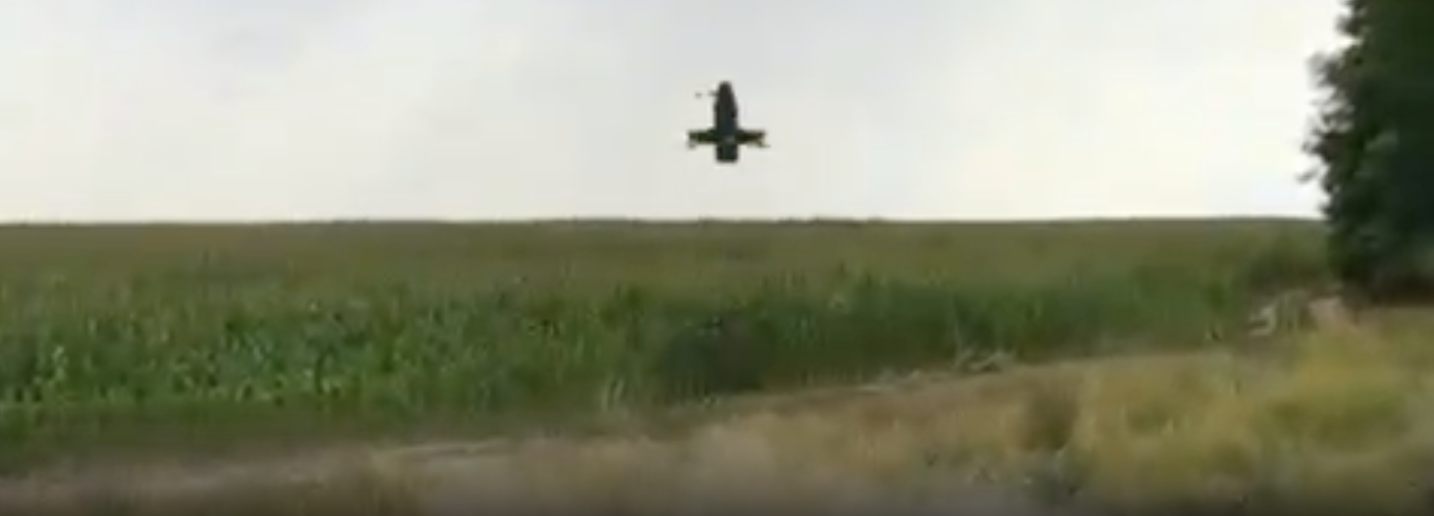

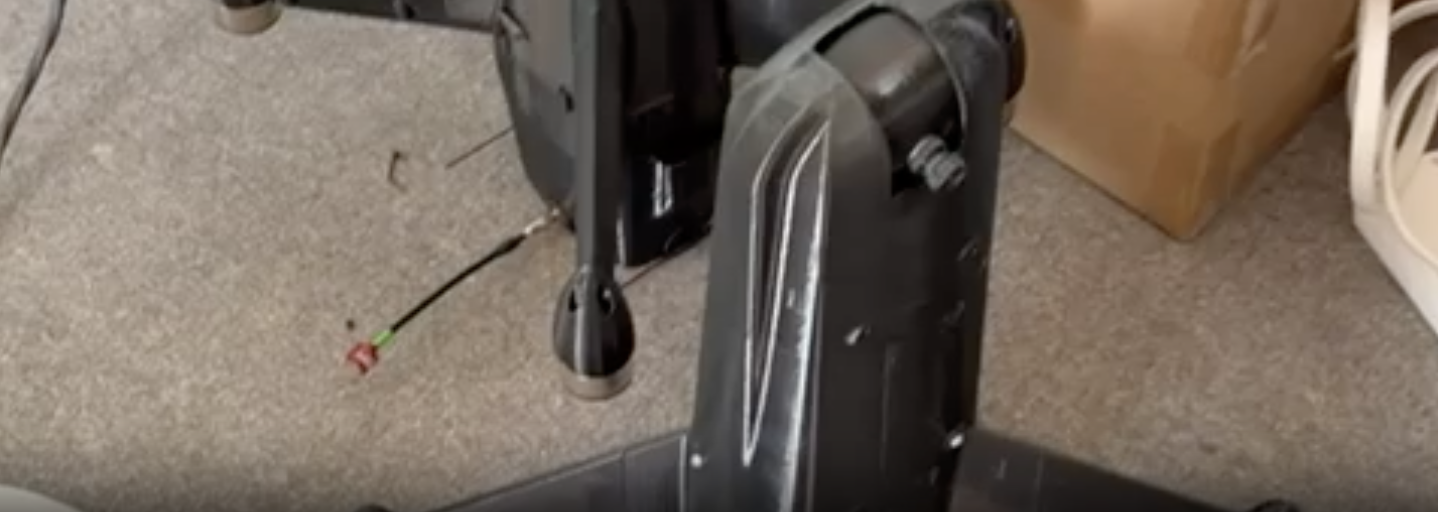

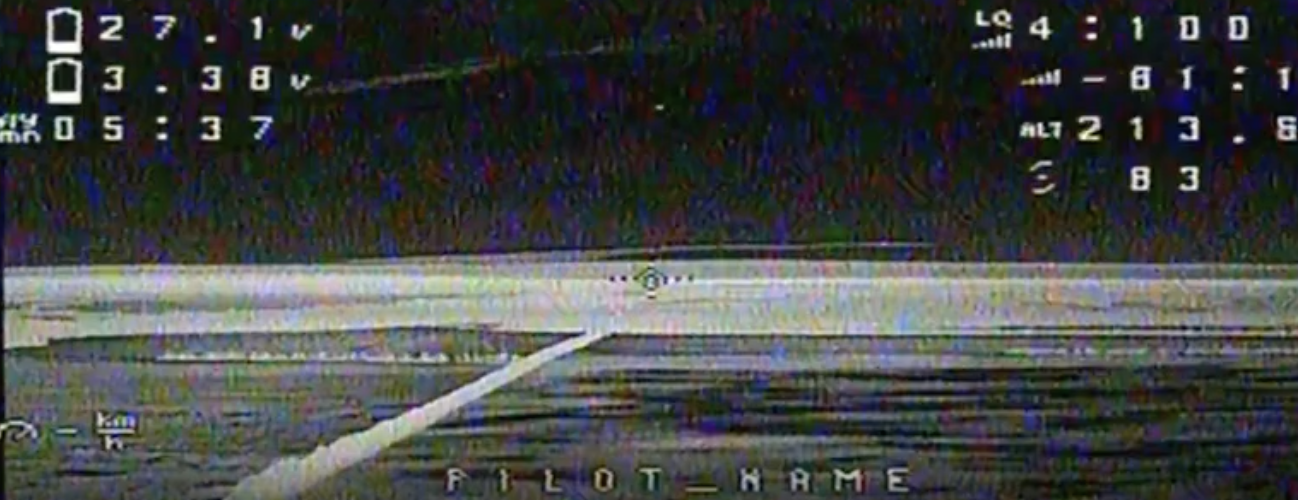

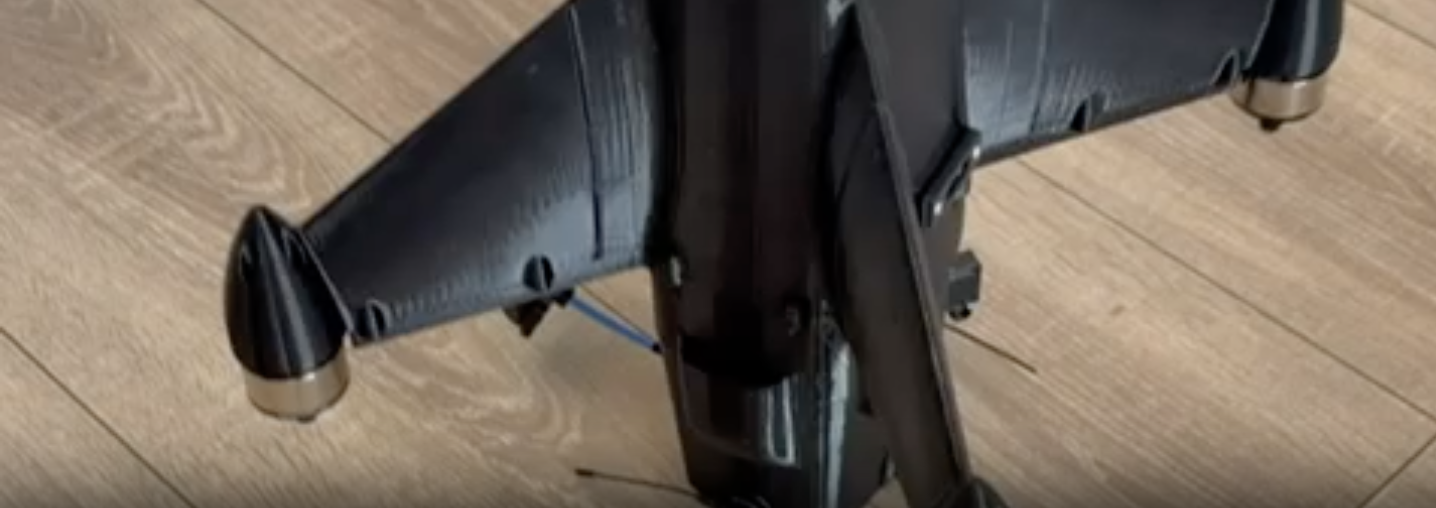

In Action
Specifications
Weight (no battery)1.3 kg
Weight (with battery)2.65 kg
Max Payload0.5 kg
Working Payload0.3 kg
Max Speed290–340 km/h
Cruising Speed160 km/h
Max Flight Time28 min
Loaded Flight Time9 min
Working Range15 km
Max Altitude5,000 m
Frame9" carbon – 6mm beam
Flight ControllerF405 / F722 / F743 – ESC 70A
Motors3115 – 900 KV
Propellers8x8x2
ControlsELRS Diversity
VideoDigital
Camera1/1.8" sensor – 1080p 100fps
Antenna5.725–5.850 GHz, 150–160mm
Battery8S1P 8500mAh
